DIN Mounting Rail
What is DIN Rail?
DIN is an abbreviation coming from the German “ Deutsches Institut für Normung” which is translated as the German Institute for Standardization. DIN rail has a standardized width of 35mm. It is shaped like a top-hat and is used for mounting terminal blocks, circuit breakers, and other control equipment
Common Types of DIN Rail
Below are some of the common types of DIN mounting rail. SCS stocks all of these types:
Part Number |
Description |
Depth |
Slotted |
|
|
|
|
0330800000 |
TS 35 x 7.5 DIN Rail Aluminum |
7.5mm |
No |
0383400000 |
TS 35 x 7.5 DIN Rail Steel (Galv) |
7.5mm |
No |
0514500000 |
TS 35 x 7.5 DIN Rail Steel (Galv) |
7.5mm |
Yes |
0270100000 |
TS 35 x 15 DIN Rail Copper |
15mm |
No |
0236400000 |
TS 35 x 15 DIN Rail Steel (Galv) |
15mm |
No |
0236500000 |
TS 35 x 15 DIN Rail Steel (Galv) |
15mm |
Yes |
|
|
|
|
All of the above part numbers refer to DIN mounting rail shipped in standard 2 meter lengths. Other lengths are available upon request.
|

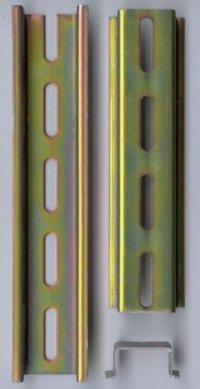

35mm wide DIN Rail - Slotted
Weidmuller P/N 0236500000
(Various views of cut pieces) |
|
| |
|
